          HEL D-20 Series

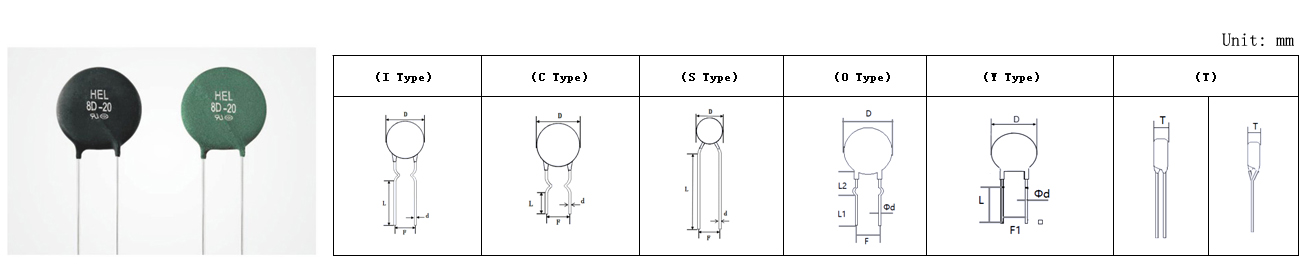

          DIMENSION


          Part No

          Dmax

          Tmax

          ?d ±0.1

          F1 ±1

          F2 ±1.5

          Straight Lead Wire

          Curved Lead wire

          Y Lead wire

          L±1

          L1±0.5

          L2±2

          L±1

          NTC□D-20

          22.5

          7

          1.0

          10

          8

          2.8-20

          2.8-20

          7或4

          2.8-20

          ELECTRICAL CHARACTERISTICS

          Part No Resistatance
          tolerance
          Packing type
          Lead wire type
          External dimensions Cutting Lead
          mm
          Datasheet
          Download
          Part No
          1.3D-20 1.3D-20
          1.5D-20 1.5D-20
          2.5D-20 2.5D-20
          3D-20 3D-20
          5D-20 5D-20
          8D-20 8D-20
          10D-20 10D-20
          16D-20 16D-20
          20D-20 20D-20

          Note: * means the reference value

          Resistatance tolerance:M:±20%;L:±15%(customized)

          Packing type: B: Bulk packing; C: Cutting lead wire & bulk packing; T: Tape & box packing

          Lead wire type: S: Straight lead; I: Kink lead; O: Out-kink lead; Y: Side Bend

          Safety certificate : CQC 10001052520 | UL/CUL E319959 | TUV NO.B0016170001

          Quality Management Certificate: ISO9001: 2015Certificates | ISO14001: 2015Certificates

          Resistance-Temperature Characteristics Static V/I Characteristics

          Safety certification for Corresponding models

          Part No. R25
          (Ω)
          Safety certifications Part No. R25
          (Ω)
          Safety certifications
          UL/CUL CQC TUV UL/CUL CQC TUV
          5D-5 5   2.5D-13 2.5
          8D-5 8   3D-13 3
          10D-5 10   4.7D-13 4.7
          20D-5 20   5D-13 5
          33D-5 33   8D-13 8
          5D-7 5 10D-13 10
          8D-7 8 16D-13 16
          10D-7 10 18D-13 18
          12D-7 12 20D-13 20
          16D-7 16 30D-13 30
          20D-7 20 47D-13 40
          22D-7 22 1.5D-15 1.5
          33D-7 33 2.5D-15 2.5
          3D-9 3 3D-15 3
          5D-9 5 5D-15 5
          6D-9 6 7D-15 7
          8D-9 8 8D-15 8
          10D-9 10 10D-15 10
          12D-9 12 15D-15 15
          15D-9 15 16D-15 16
          16D-9 16 18D-15 18
          20D-9 20 20D-15 20
          22D-9 22 30D-15 30
          33D-9 33 47D-15 47
          50D-9 50 50D-15 50
          100D-9 100 1.3D-20 1.3
          120D-9 120 1.5D-20 1.5
          2.5D-11 2.5 2.5D-20 2.5
          3D-11 3 3D-20 3
          5D-11 5 5D-20 5
          8D-11 8 8D-20 8
          10D-11 10 10D-20 10
          12D-11 12 16D-20 16
          15D-11 15 20D-20 20
          16D-11 16 Note:
          UL/CUL certificate number:E319959
          CQC??? certificate number:10001052520
          TUV??? certificate number:NO.B0016170001
          20D-11 20
          33D-11 33
          47D-11 47
          50D-11 50
